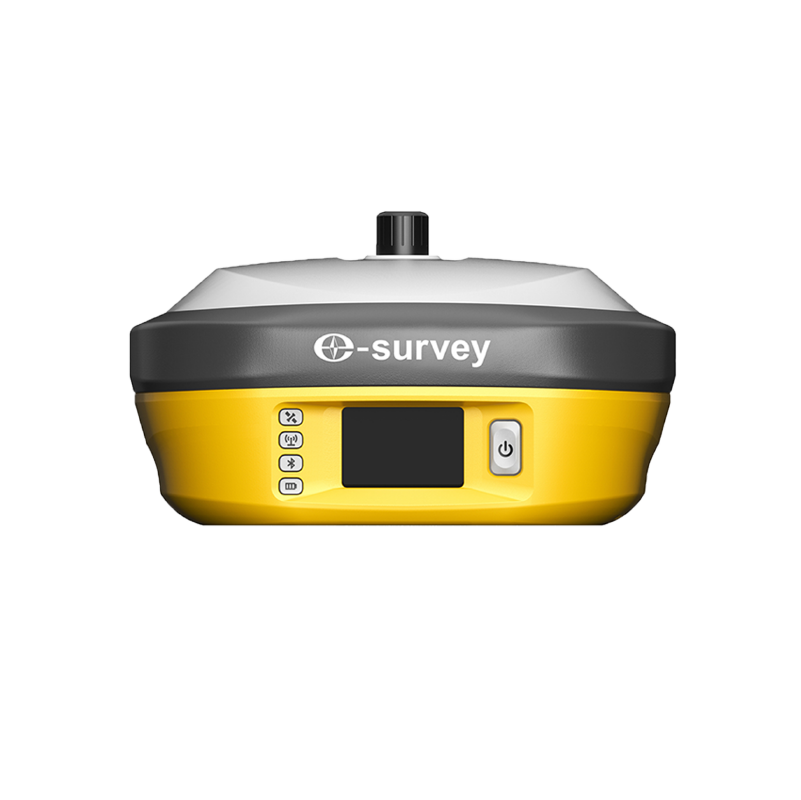

ESurvey E800 GNSS RTK Receiver (Trimble Board)
HIGH-PERFORMANCE GNSS RECEIVER
The E800 is a high-performance GNSS receiver that provides an easy-to-use solution for survey professionals who need to collect highly accurate data in a wide range of applications. The durable IP67 design makes it possible to work in extreme environments. The colorful touchscreen is convenient for quick configurations
Key Specification
- 336 Channel Trimble BD990 Board, GPS, GLONASS, GALILEO, BEIDOU, BDS, QZSS, NavIC, SBAS,
Trimble RTX L-Band, 50Hz, RTK, Static, DGPS, PPP, Built-in Battery, 9-28 VDC, LTE, WCDMA
BT, Wifi, Tilt MEMS, WebUI, Dimension : Φ154 mm x H76 mm, Weight 1.5Kg, IP67 - Built-in radio (5W) has up to 10km transmission distance, 410-470Mhz full-band, compatible with major transmission protocols.
- Superior anti-interference ability enable stronger signal acquisition capability in harsh environments.
- Built-in battery (13000mAh) for longer lasting operation.
- Magnesium-aluminum alloy design for excellent heat dissipation.
- Built-in 4G network module provides more stable network communication.
- Color LCD display, multi-touch built-in Bluetooth, WiFi communication module compatible with multi constellation satellites and more stable network communication.
- Tilt survey : No calibration is required before measurement, the accuracy of coordinate data can be easily achieved within 30 ° tilt angle.
